Exporting Figures to PDF

This vignette covers export_tfl() and export_tfl_page() as used with ggplot2 figures and grid grobs. For data-frame table output, see vignette("v02-tfl_table_intro") and vignette("v03-tfl_table_styling").

library(writetfl)
library(ggplot2)
library(grid)   # for linesGrob()

Typical use

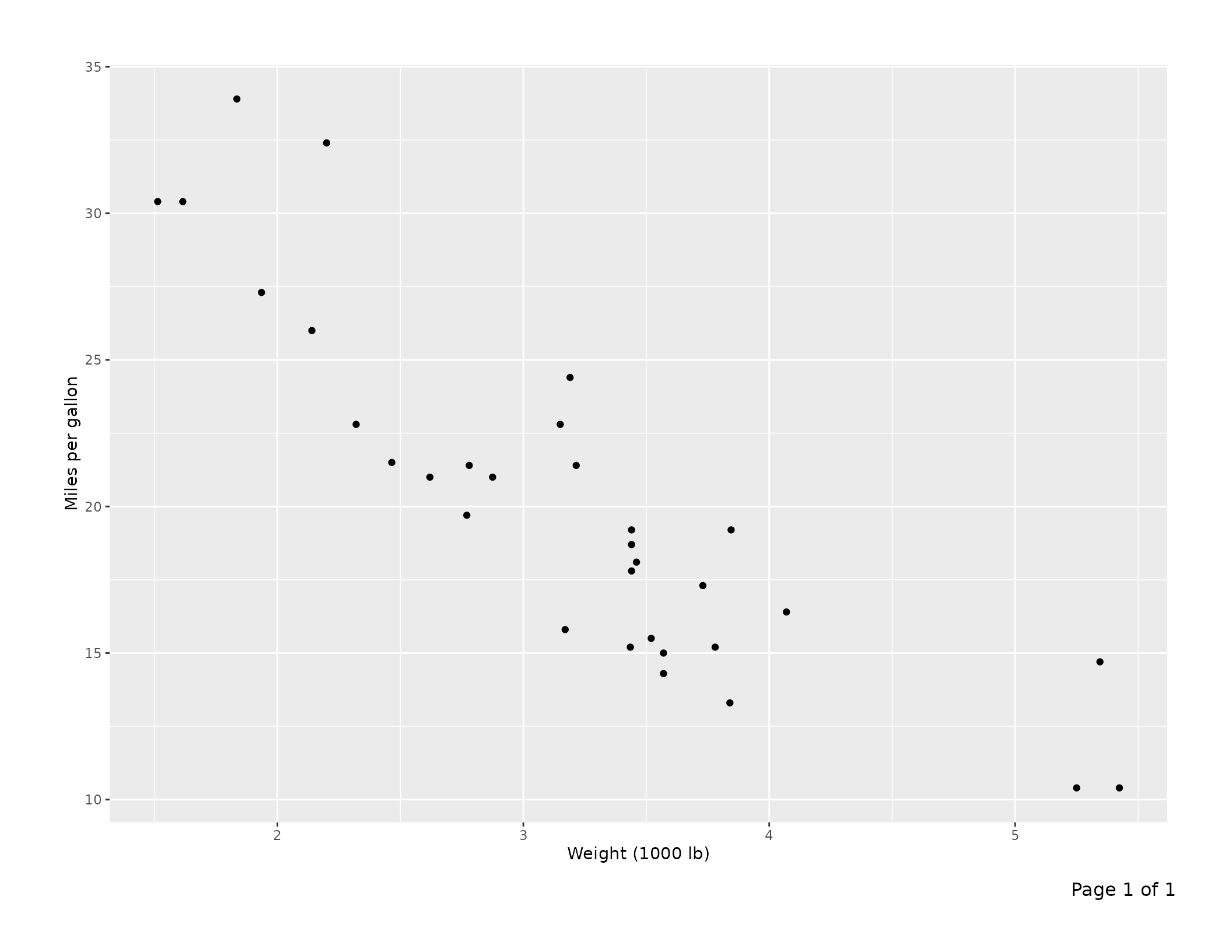

Saving a single figure

Pass one ggplot object directly. A page number ("Page 1 of 1") is added to the bottom-right corner automatically.

p <- ggplot(mtcars, aes(wt, mpg)) +
  geom_point() +
  labs(x = "Weight (1000 lb)", y = "Miles per gallon")

export_tfl(p, preview = TRUE)

A report with a header on every page

Supply shared annotations via ...; they apply to every page. Here the report title goes top-left and the date top-right, separated from the content by a full-width rule.

plots <- list(
  list(content = ggplot(mtcars, aes(wt,  mpg)) + geom_point() +
                   labs(title = "Weight vs MPG")),
  list(content = ggplot(mtcars, aes(hp,  mpg)) + geom_point() +
                   labs(title = "Horsepower vs MPG")),
  list(content = ggplot(mtcars, aes(disp, mpg)) + geom_point() +
                   labs(title = "Displacement vs MPG"))
)

export_tfl(
  plots,
  file         = "report.pdf",
  header_left  = "Fuel Economy Analysis",
  header_right = format(Sys.Date(), "%d %b %Y"),
  header_rule  = TRUE
)

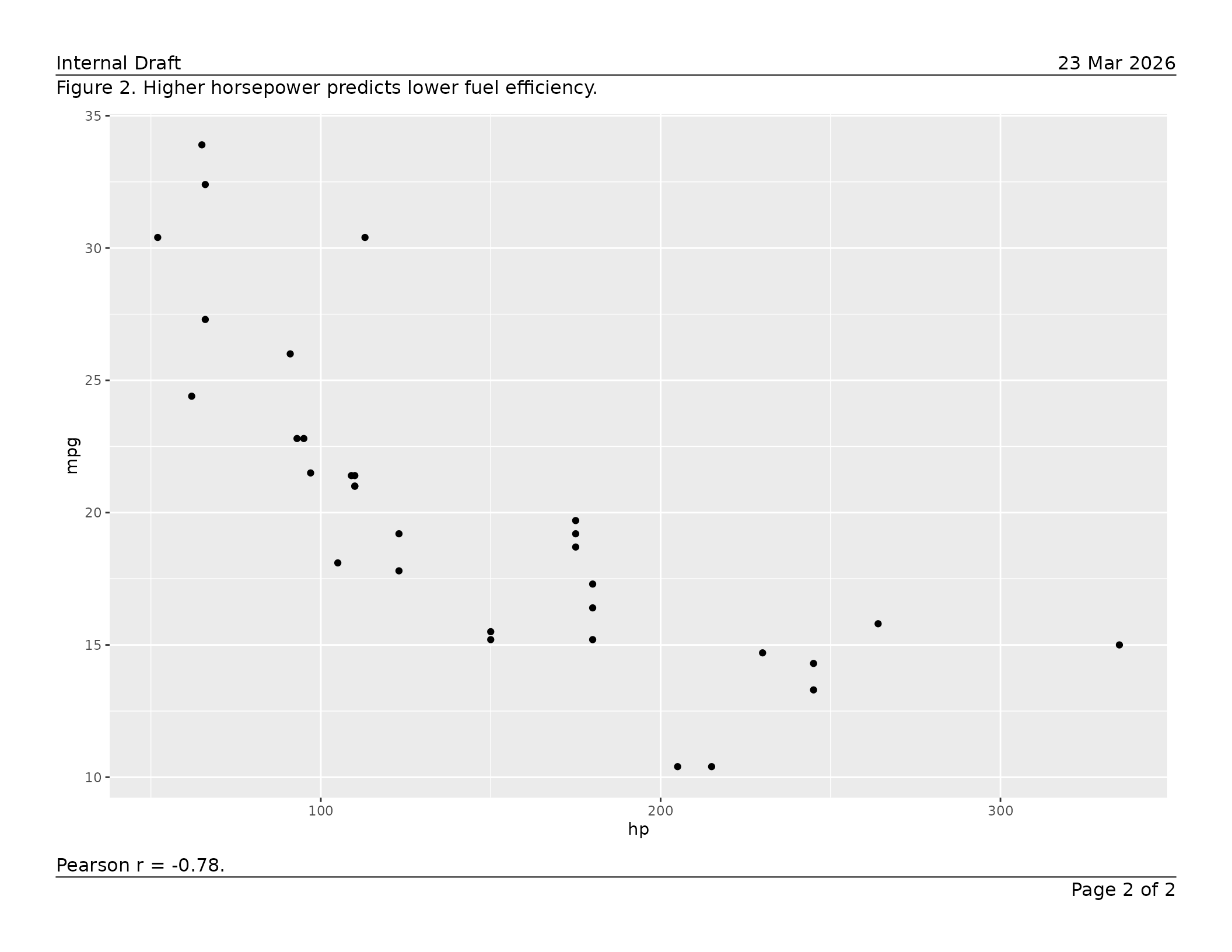

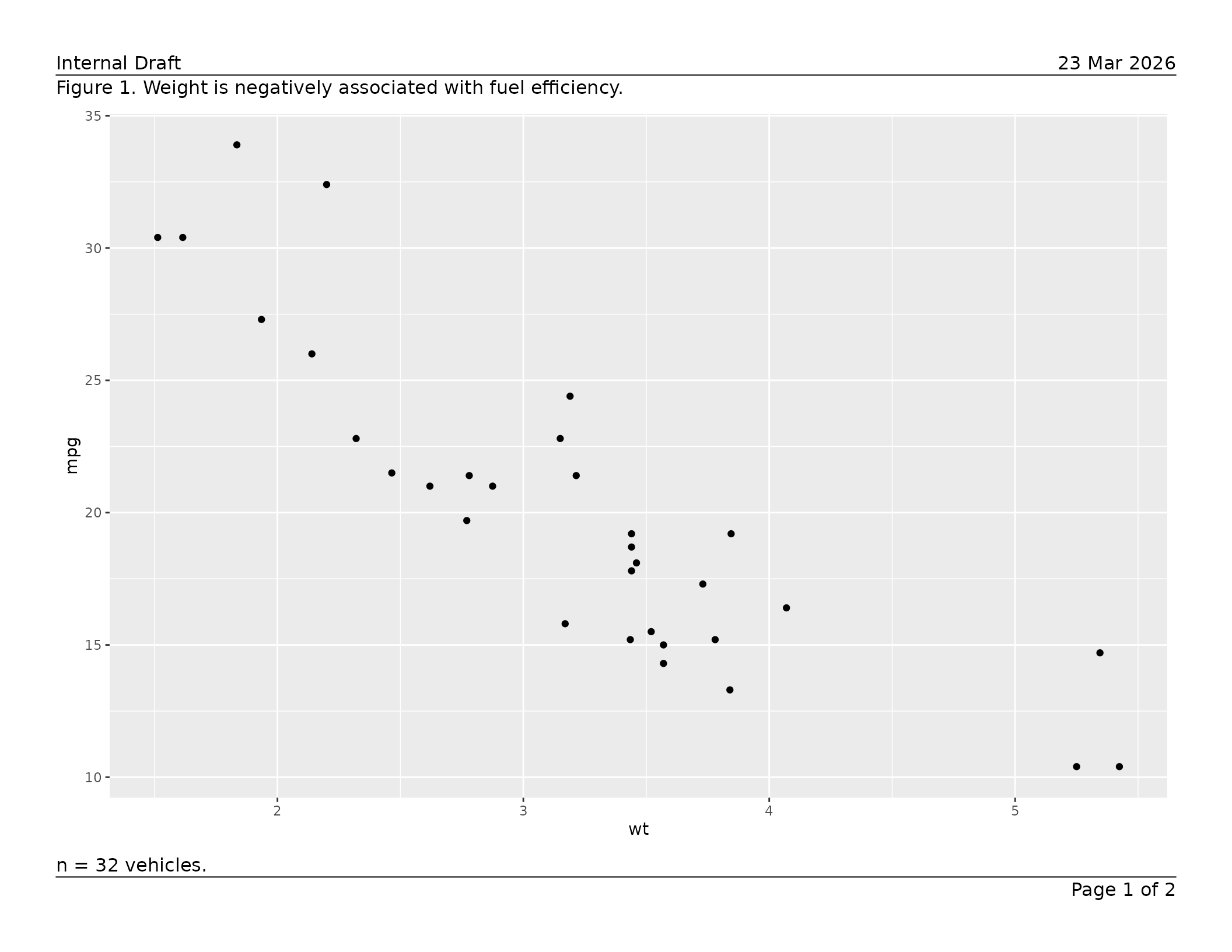

Per-page captions and footnotes

Put text that differs per page inside each page’s list element. Per-page values always override the shared defaults supplied via ....

pages <- list(
  list(
    content  = ggplot(mtcars, aes(wt, mpg))  + geom_point(),
    caption  = "Figure 1. Weight is negatively associated with fuel efficiency.",
    footnote = "n = 32 vehicles."
  ),
  list(
    content  = ggplot(mtcars, aes(hp, mpg))  + geom_point(),
    caption  = "Figure 2. Higher horsepower predicts lower fuel efficiency.",
    footnote = "Pearson r = -0.78."
  )
)

export_tfl(
  pages,
  preview      = TRUE,
  header_left  = "Internal Draft",
  header_right = format(Sys.Date(), "%d %b %Y"),
  header_rule  = TRUE,
  footer_rule  = TRUE
)

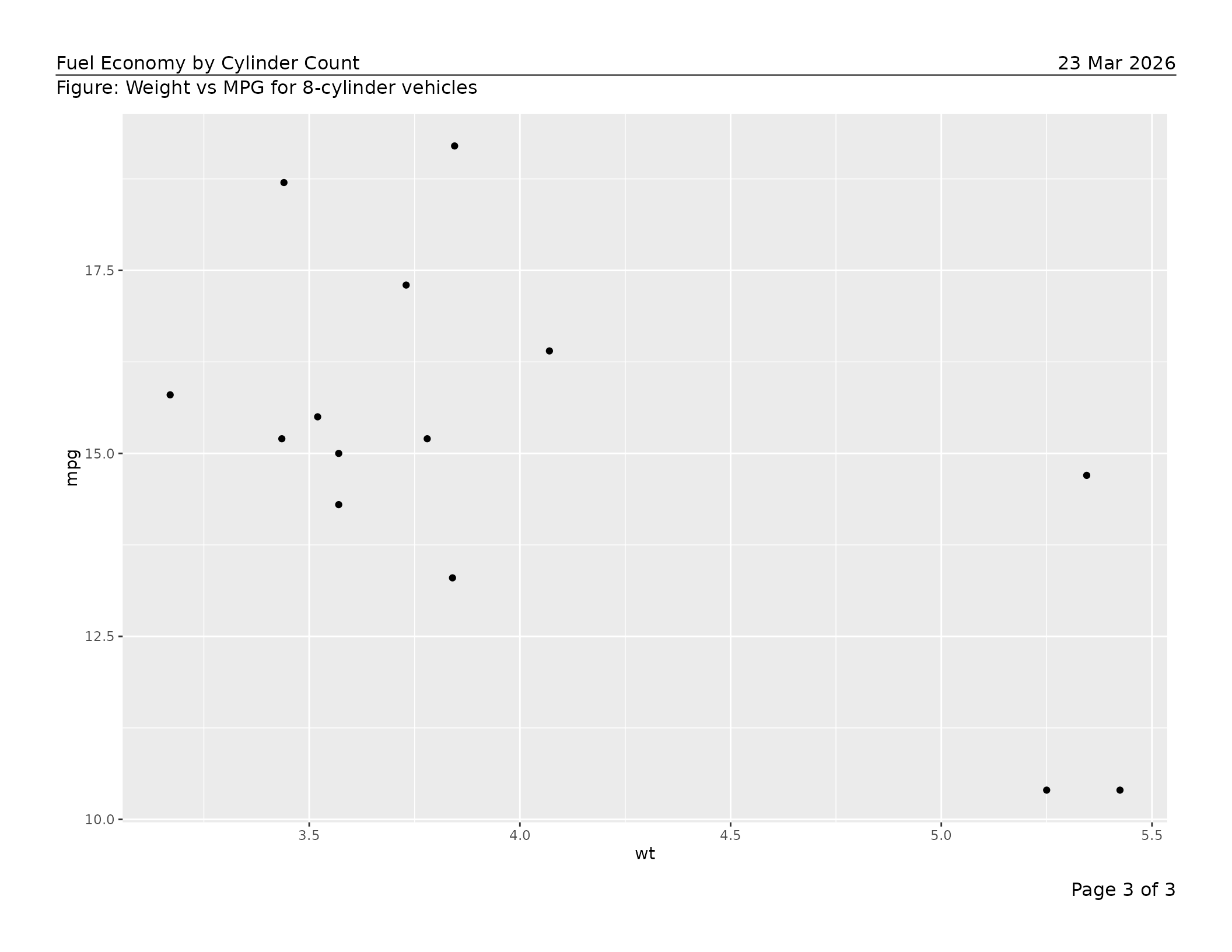

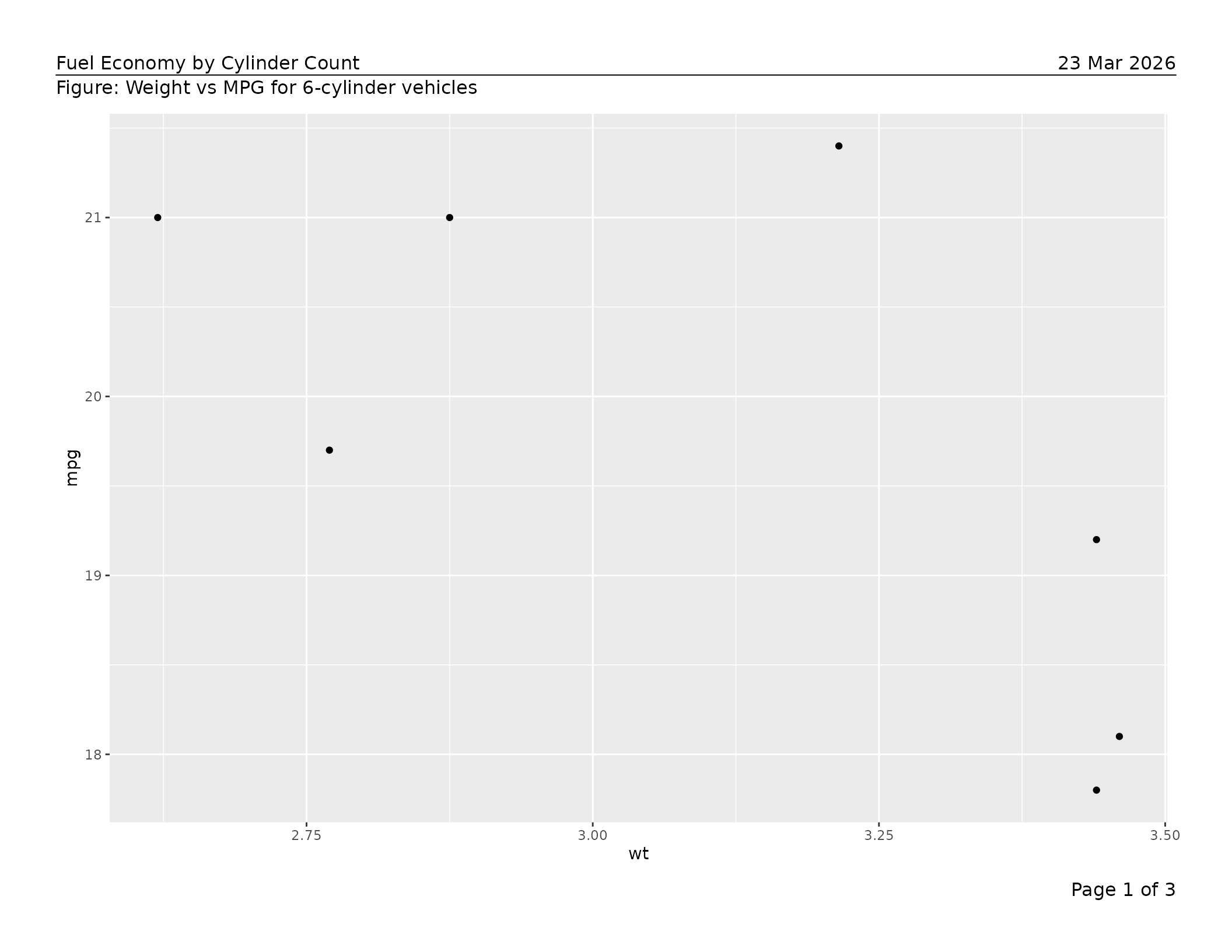

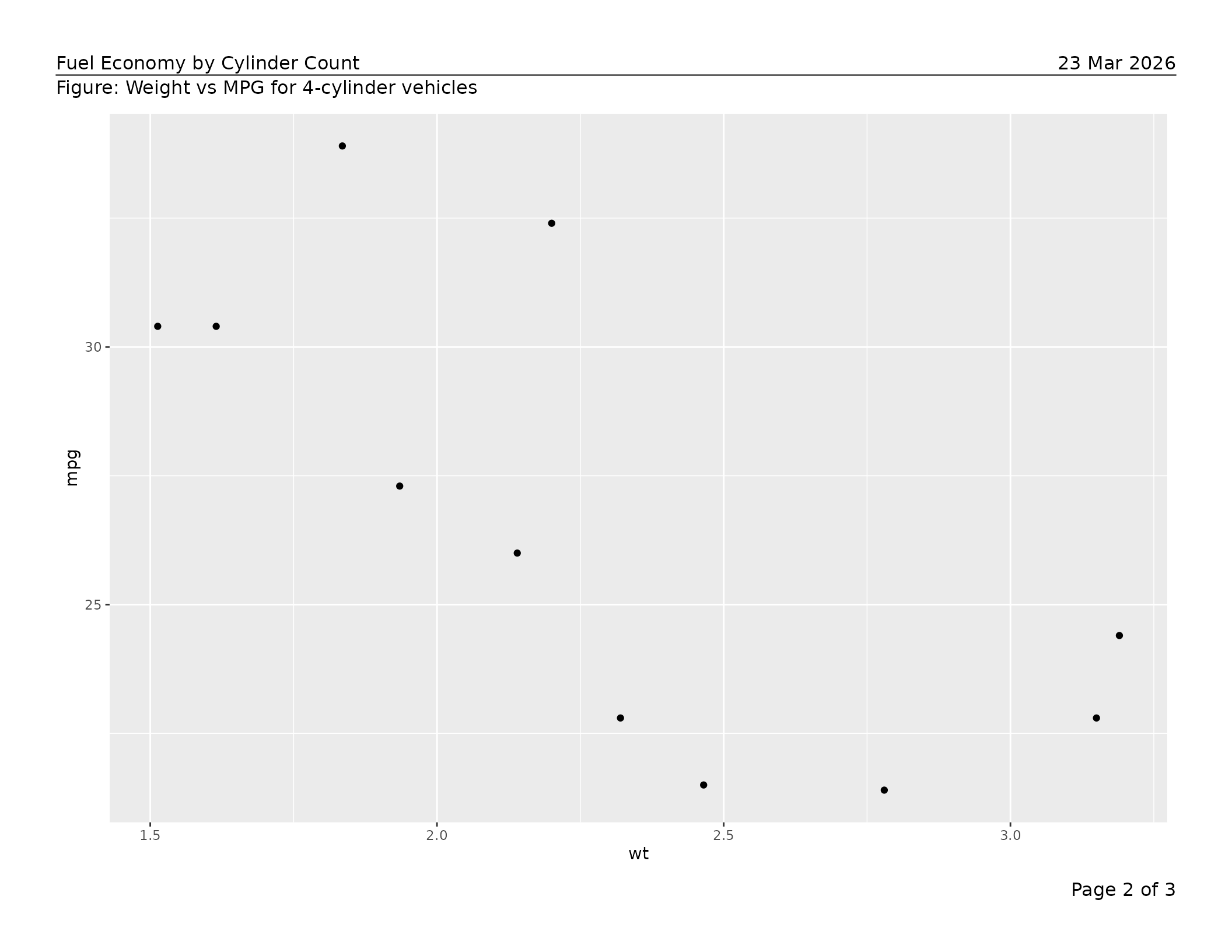

Exporting a ggtibble

If you use the ggtibble package to generate a collection of figures, you can pass the ggtibble object directly to export_tfl(). Each row becomes one page: the figure column provides the content and the caption column is used automatically. Any column whose name matches an export_tfl_page() text argument (header_left, footnote, etc.) is mapped as a per-page value.

library(ggtibble)
#>
#> Attaching package: 'ggtibble'
#> The following objects are masked from 'package:ggplot2':
#>
#>     %+%, ggsave

d <- mtcars
d$cyl <- factor(d$cyl)

all_plots <-
  ggtibble(
    d,
    ggplot2::aes(x = wt, y = mpg),
    outercols = "cyl",
    caption   = "Figure: Weight vs MPG for {cyl}-cylinder vehicles"
  ) +
  geom_point()

# Preview all pages (one per cylinder group)
export_tfl(
  all_plots,
  preview      = TRUE,
  header_left  = "Fuel Economy by Cylinder Count",
  header_right = format(Sys.Date(), "%d %b %Y"),
  header_rule  = TRUE
)

You can also add extra annotation columns to the ggtibble before export. Column names must match export_tfl_page() argument names exactly:

all_plots$footnote <- paste("n =", table(d$cyl)[as.character(all_plots$cyl)])

export_tfl(all_plots, file = "by_cylinder.pdf",
           header_left = "Report Title",
           header_rule = TRUE)

Using grid grobs as content

Any grid grob is accepted as content, so figures and hand-assembled grobs can be mixed in one multi-page PDF. The example below uses gridExtra::tableGrob() to drop a plain matrix table onto a page alongside a figure.

# Any grid grob works as content
library(gridExtra)
tbl_grob <- tableGrob(head(mtcars[, 1:5], 10))

export_tfl(
  list(
    list(
      content  = tbl_grob,
      caption  = "Table 1. First 10 rows of the mtcars dataset.",
      footnote = "Source: Motor Trend (1974)."
    ),
    list(
      content = ggplot(mtcars, aes(wt, mpg)) + geom_point(),
      caption = "Figure 1. Weight vs MPG."
    )
  ),
  file        = "mixed.pdf",
  header_left = "Analysis Report",
  header_rule = TRUE
)

For richly paginated data-frame tables — with automatic column widths, word-wrapping, row and column pagination, and group-aware page breaks — use tfl_table() instead. See vignette("v02-tfl_table_intro") for details.

All features, roughly in order of use

Page dimensions and margins

The defaults are landscape letter (11 × 8.5 in) with half-inch margins on all sides. Override any of these:

export_tfl(
  p,
  file      = "portrait.pdf",
  pg_width  = 8.5,
  pg_height = 11,
  margins   = unit(c(t = 1, r = 0.75, b = 1, l = 0.75), "inches")
)

Automatic page numbering

By default the footer right reads "Page {i} of {n}". Supply a glue template to change the format, or NULL to turn it off entirely.

# Custom format
export_tfl(plots, file = "numbered.pdf",
  page_num = "{i}/{n}")

# No page numbers
export_tfl(plots, file = "no-numbers.pdf",
  page_num = NULL)

Any footer_right value — whether supplied via ... or inside a page list element — silently overrides page_num for that page.

pages_custom <- list(
  list(content = p, footer_right = "Appendix A"),   # overrides page_num
  list(content = p)                                 # gets "Page 2 of 2"
)
export_tfl(pages_custom, file = "mixed.pdf")

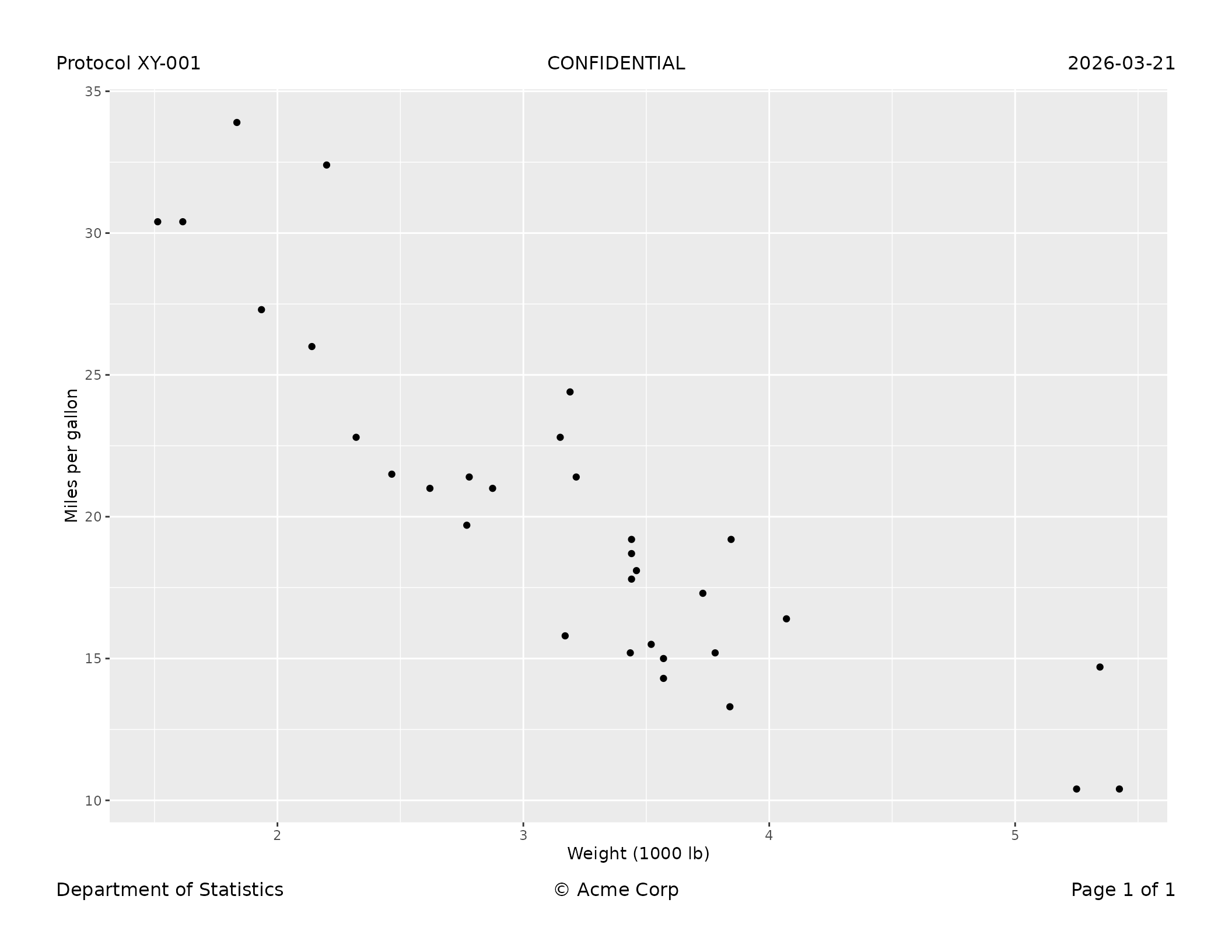

All header and footer positions

Both the header and footer rows have left, centre, and right slots. Any combination can be used; absent slots consume no space.

export_tfl(
  p,
  preview       = TRUE,
  header_left   = "Protocol XY-001",
  header_center = "CONFIDENTIAL",
  header_right  = "2026-03-21",
  footer_left   = "Department of Statistics",
  footer_center = "\u00a9 Acme Corp",
  footer_right  = "Page 1 of 1"
)

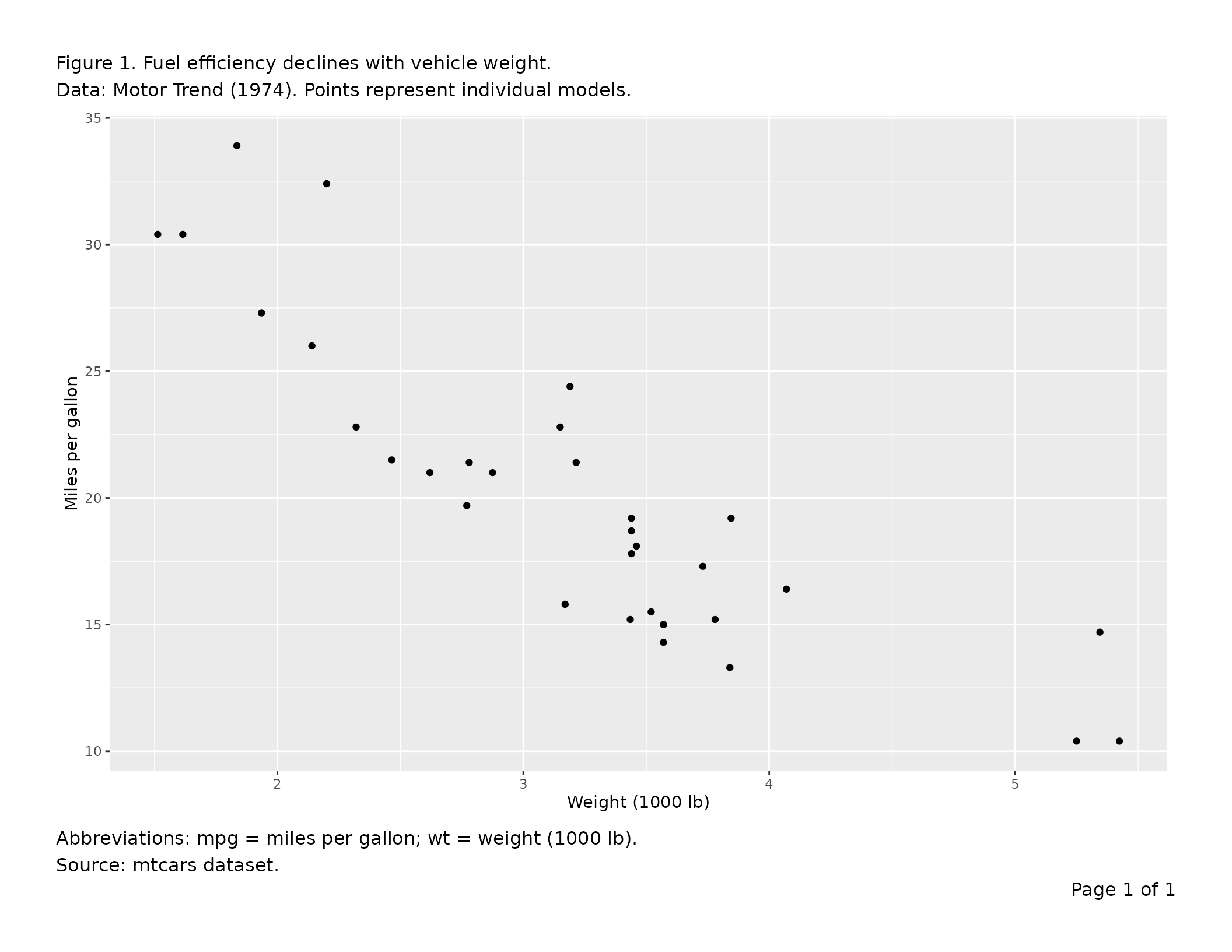

Multi-line text

Pass a character vector to any text argument; elements are joined with "\n". Alternatively, embed "\n" directly in a string. Both styles are equivalent and both affect the reserved section height automatically.

export_tfl(
  p,
  preview  = TRUE,
  caption  = c(
    "Figure 1. Fuel efficiency declines with vehicle weight.",
    "Data: Motor Trend (1974). Points represent individual models."
  ),
  footnote = "Abbreviations: mpg = miles per gallon; wt = weight (1000 lb).\nSource: mtcars dataset."
)

Separator rules

header_rule draws a line between the header row and the caption or content. footer_rule draws a line between the content or footnote and the footer row. Both live inside the padding gap and do not add height.

Value	Effect
`FALSE` (default)	no rule
`TRUE`	full-width rule
`0.5`	rule at 50 % of the viewport width, centred
`linesGrob(...)`	custom grob, drawn as-is

# Full-width header rule, half-width footer rule
export_tfl(
  p,
  preview      = TRUE,
  header_left  = "Report Title",
  footer_right = "Confidential",
  header_rule  = TRUE,
  footer_rule  = 0.5
)

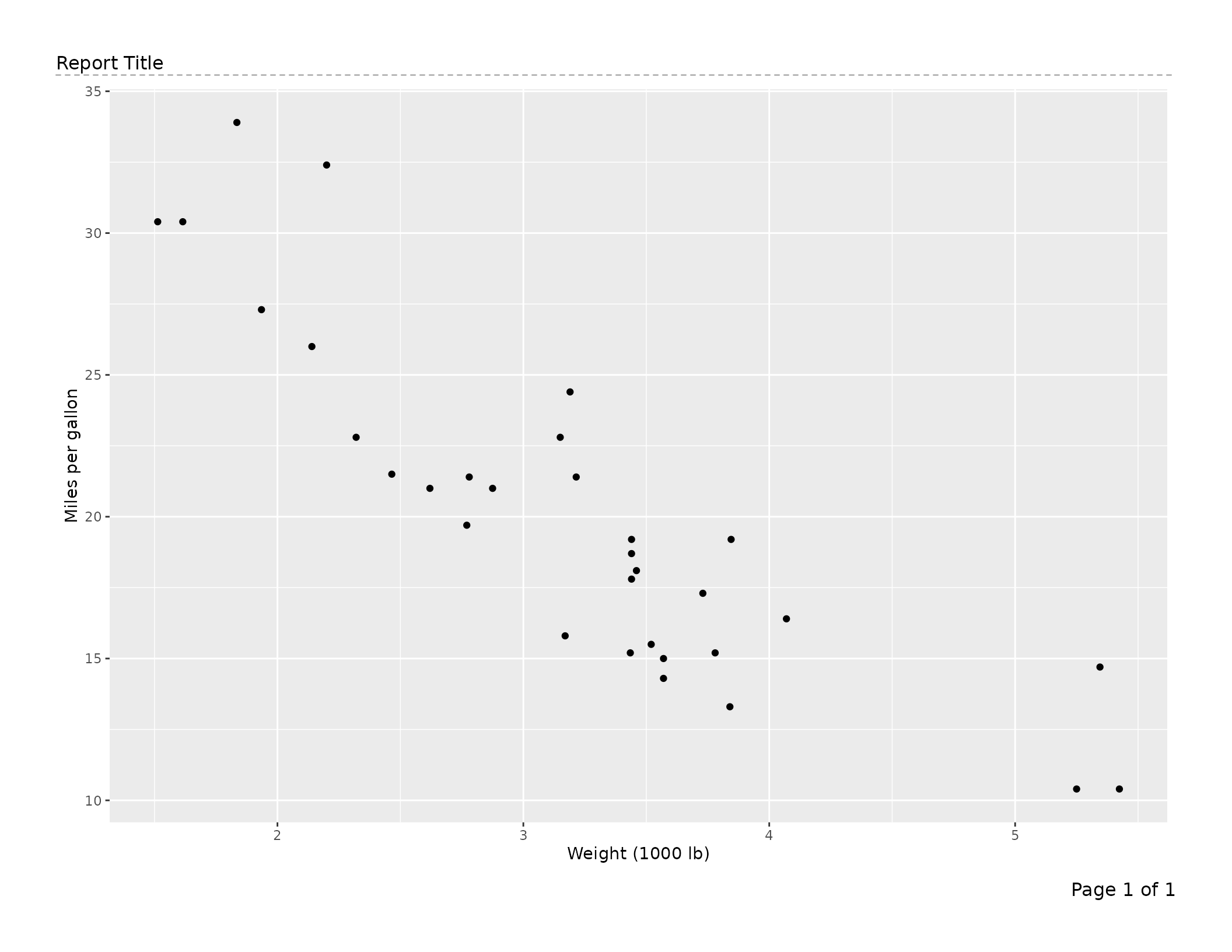

# Custom grob: dashed rule
dashed_rule <- linesGrob(
  x   = unit(c(0, 1), "npc"),
  y   = unit(c(0.5, 0.5), "npc"),
  gp  = gpar(lty = "dashed", col = "gray60"),
  name = "dashed"
)
export_tfl(
  p,
  preview     = TRUE,
  header_left = "Report Title",
  header_rule = dashed_rule
)

Typography with `gp`

Pass a single gpar() to style all text uniformly, or a named list for section- or element-level control. Resolution priority (highest wins): element → section → global.

# All annotation text at 10 pt
export_tfl(
  p,
  file        = "gp-global.pdf",
  header_left = "Report",
  caption     = "Figure 1.",
  gp          = gpar(fontsize = 10)
)

# Section-level and element-level overrides
export_tfl(
  p,
  preview      = TRUE,
  header_left  = "Protocol XY-001",
  header_right = "2026-03-21",
  caption      = "Figure 1. Results.",
  footnote     = "Source: internal data.",
  header_rule  = TRUE,
  footer_rule  = TRUE,
  gp = list(
    header       = gpar(fontsize = 11, fontface = "bold"),
    header_right = gpar(fontsize =  9, col = "gray50"),
    caption      = gpar(fontsize =  9, fontface = "italic"),
    footnote     = gpar(fontsize =  8),
    footer       = gpar(fontsize =  8)
  )
)

Caption and footnote justification

export_tfl(
  p,
  file          = "centred-caption.pdf",
  caption       = "Figure 1. Centred caption text.",
  footnote      = "Right-aligned footnote.",
  caption_just  = "centre",
  footnote_just = "right"
)

Controlling inter-section padding

padding sets the vertical gap between any two adjacent present sections. Rules are drawn at the midpoint of this gap. Increase it for more breathing room or decrease it to pack the layout tightly.

export_tfl(
  p,
  file        = "tight.pdf",
  header_left = "Header",
  caption     = "Caption",
  footnote    = "Footnote",
  padding     = unit(0.08, "lines")
)

Minimum content height guard

min_content_height (default unit(3, "inches")) prevents the content area from being squeezed to an unreadable size. If the computed content height falls below this threshold after all other sections are placed, the call errors with an informative message before any drawing occurs.

# Relax the guard for a very tall annotation stack
export_tfl(
  p,
  file               = "tall-annotations.pdf",
  pg_height          = 6,
  header_left        = "Title",
  caption            = paste(rep("Long caption. ", 20), collapse = ""),
  min_content_height = unit(1.5, "inches")
)

Overlap detection

When left and right header or footer text are wide enough to risk collision, writetfl warns or errors automatically.

Gap < 0 (true overlap) → error before drawing.
0 ≤ gap < overlap_warn_mm mm → rlang::warn() (drawing still proceeds).
overlap_warn_mm = NULL → detection disabled entirely.

# Tighten the warning threshold to catch moderate crowding early
export_tfl(
  p,
  file            = "overlap-check.pdf",
  header_left     = "A moderately long left header",
  header_right    = "A moderately long right header",
  overlap_warn_mm = 20
)

# Silence overlap detection for a layout you have manually verified
export_tfl(
  p,
  file            = "no-overlap-check.pdf",
  header_left     = "Left",
  header_right    = "Right",
  overlap_warn_mm = NULL
)

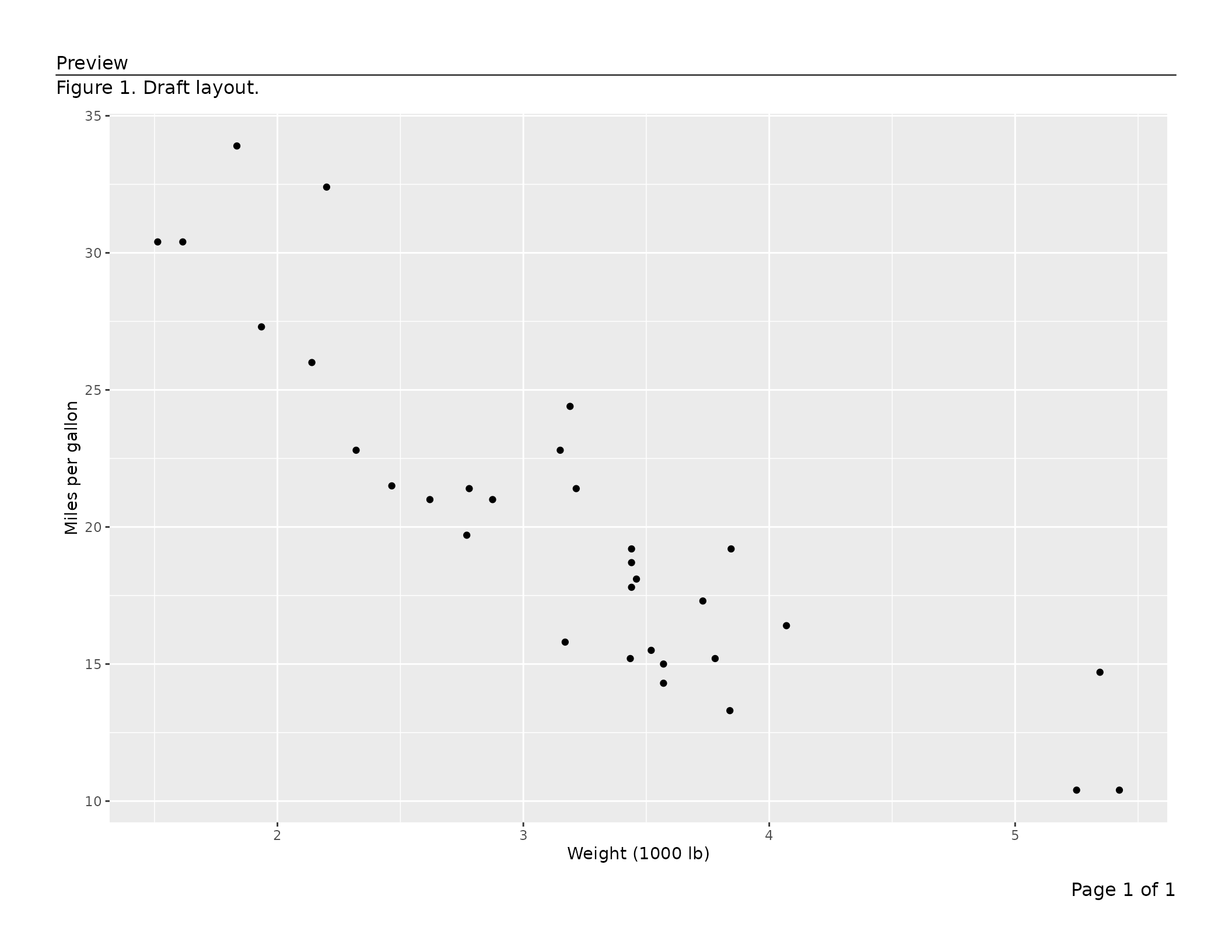

Preview mode (interactive layout tuning)

preview = TRUE in export_tfl() draws to the current device without opening or closing a PDF. Pass specific page numbers as an integer vector (e.g. preview = c(1, 3)) to render only those pages. Both are useful for interactive inspection in RStudio or Positron, and for rendering inline graphics in vignettes and reports.

The lower-level export_tfl_page() also accepts preview = TRUE, which is useful when building a single page interactively:

export_tfl_page(
  x            = list(content = p),
  header_left  = "Preview",
  caption      = "Figure 1. Draft layout.",
  footer_right = "Page 1 of 1",
  header_rule  = TRUE,
  preview      = TRUE
)

To iterate quickly, call this repeatedly until the layout looks right, then switch to export_tfl() for the final PDF.

Reference: argument priority order

When export_tfl() is used, the same argument can be specified at up to three levels. The highest-priority value wins:

Priority	Where set	Example
1 (highest)	Inside a page list element	`list(content = p, caption = "Per-page")`
2	`...` of `export_tfl()`	`export_tfl(..., caption = "Shared")`
3 (lowest)	`export_tfl_page()` defaults	`caption = NULL`

page_num is applied after this merging: it populates footer_right only if footer_right remains NULL after steps 1 and 2.
