Exporting gt Tables to PDF • writetfl

This vignette covers export_tfl() as used with gt table objects. For data-frame tables built with tfl_table(), see vignette("v02-tfl_table_intro"). For figure output, see vignette("v01-figure_output").

library(writetfl)
library(gt)
library(grid)

Basic usage

Pass a gt_tbl object directly to export_tfl(). The title, subtitle, source notes, and footnotes are automatically extracted and placed in writetfl’s annotation zones (caption and footnote), while the table body is rendered as a grid grob via gt::as_gtable().

tbl <- gt(head(mtcars, 10)) |>
  tab_header(
    title    = "Motor Trend Car Road Tests",
    subtitle = "First 10 observations"
  ) |>
  tab_source_note("Source: Motor Trend US magazine (1974).")

export_tfl(tbl, preview = TRUE)

Why annotations are extracted

gt normally renders its title, subtitle, source notes, and footnotes inside the table grob itself. When placed inside writetfl’s page layout, this would cause duplication — the annotations would appear both in the grob and in writetfl’s header/footer zones. To avoid this, export_tfl() extracts gt annotations into writetfl’s annotation fields and strips them from the gt object before converting to a grob.

The mapping is:

gt annotation	writetfl field
`tab_header(title = ...)`	`caption` (first line)
`tab_header(subtitle = ...)`	`caption` (second line, joined with `\n`)
`tab_source_note(...)`	`footnote`
`tab_footnote(...)`	`footnote` (combined with source notes)

Adding page layout elements

All of writetfl’s page layout arguments work with gt tables. Pass them via ... just as you would for figures.

tbl <- gt(head(iris, 15)) |>
  tab_header(title = "Iris Measurements") |>
  tab_source_note("Source: Fisher (1936).")

export_tfl(
  tbl,
  preview      = TRUE,
  header_left  = "Study Report",
  header_right = format(Sys.Date(), "%d %b %Y"),
  header_rule  = TRUE,
  footer_rule  = TRUE
)

Multiple gt tables

Pass a list of gt_tbl objects to produce a multi-page PDF with one table per page. Each table’s annotations are extracted independently.

tbl1 <- gt(head(mtcars, 10)) |>
  tab_header(title = "Table 1. First 10 rows")

tbl2 <- gt(tail(mtcars, 10)) |>
  tab_header(title = "Table 2. Last 10 rows")

export_tfl(
  list(tbl1, tbl2),
  file         = "two-tables.pdf",
  header_left  = "Appendix",
  header_rule  = TRUE
)

Footnotes and source notes

Cell-level footnotes added via tab_footnote() and source notes added via tab_source_note() are combined into writetfl’s footnote zone.

tbl <- gt(head(mtcars[, 1:6], 8)) |>
  tab_header(title = "Fuel Economy Data") |>
  tab_footnote(
    "Highest in sample.",
    locations = cells_body(columns = mpg, rows = mpg == max(mpg))
  ) |>
  tab_source_note("Source: Motor Trend (1974).")

export_tfl(tbl, preview = TRUE)

Automatic pagination for tall tables

When a gt table is too tall to fit on a single page, export_tfl() splits it across multiple pages automatically. Row group boundaries are respected — a group is never split across pages.

# A large table that won't fit on one page
big_data <- data.frame(
  group = rep(c("Treatment A", "Treatment B", "Placebo"), each = 20),
  subject = paste0("SUBJ-", sprintf("%03d", 1:60)),
  value   = round(rnorm(60, 100, 15), 1)
)

tbl <- gt(big_data, groupname_col = "group") |>
  tab_header(title = "Subject-Level Results") |>
  tab_source_note("Source: Clinical Trial XY-001.")

export_tfl(
  tbl,
  file         = "paginated.pdf",
  header_left  = "Study Report",
  header_rule  = TRUE,
  footer_rule  = TRUE
)

Each page carries the same caption and footnote from the original gt object. The column headers are repeated on every page since each page is a complete gt sub-table.

How pagination works

The full table is converted to a grob and its height measured.
If it fits within the available content area, a single page is produced.
If it overflows, rows are split into groups:
- With tab_row_group(): groups of rows defined by tab_row_group() are kept together. Pages are filled greedily by groups.
- Without row groups: each row is treated as its own unit, allowing fine-grained page breaks.
For each page chunk, a sub-table is built preserving column labels, fmt_*() formatting, tab_style() styling, column spanners, merged columns, and summary rows.

Ungrouped tables

Tables without explicit row groups are split row-by-row:

tbl <- gt(mtcars) |>
  tab_header(title = "All 32 Cars") |>
  fmt_number(columns = mpg, decimals = 1)

export_tfl(tbl, file = "all-cars.pdf")

Preserved gt features

The following gt features are preserved through pagination:

Feature	Preserved?	Notes
`tab_header()`	Yes	Extracted as writetfl caption
`tab_source_note()`	Yes	Extracted as writetfl footnote
`tab_footnote()`	Yes	Combined with source notes
`tab_row_group()`	Yes	Groups kept together across pages
`tab_spanner()`	Yes	Column spanners repeated on every page
`fmt_*()` functions	Yes	Re-indexed per page subset
`tab_style()`	Yes	Re-indexed per page subset
`cols_merge()`	Yes	Carried through boxhead
`cols_label()`	Yes	Carried through boxhead
`summary_rows()`	Yes	Filtered to groups present on each page
`sub_*()` functions	Yes	Re-indexed per page subset
`text_transform()`	Yes	Re-indexed per page subset
`tab_options()`	Yes	Copied to every page
`tab_stubhead()`	Yes	Copied to every page
`gt(locale = ...)`	Yes	Locale preserved through pagination

tbl <- gt(mtcars[, 1:6]) |>
  tab_header(title = "Motor Trend Data") |>
  tab_spanner(label = "Performance", columns = c(mpg, cyl, disp)) |>
  tab_spanner(label = "Engine", columns = c(hp, drat, wt)) |>
  fmt_number(columns = mpg, decimals = 1) |>
  tab_style(
    style = cell_fill(color = "lightyellow"),
    locations = cells_body(columns = mpg)
  )

export_tfl(tbl, file = "styled.pdf")

Column labels

Custom column labels set with cols_label() are preserved through pagination. Labels are stored in the boxhead metadata and carried to every page.

tbl <- gt(head(mtcars[, 1:4], 8)) |>
  tab_header(title = "Relabelled Columns") |>
  cols_label(
    mpg  = "Miles/Gallon",
    cyl  = "Cylinders",
    disp = "Displacement",
    hp   = "Horsepower"
  )

export_tfl(tbl, preview = TRUE)

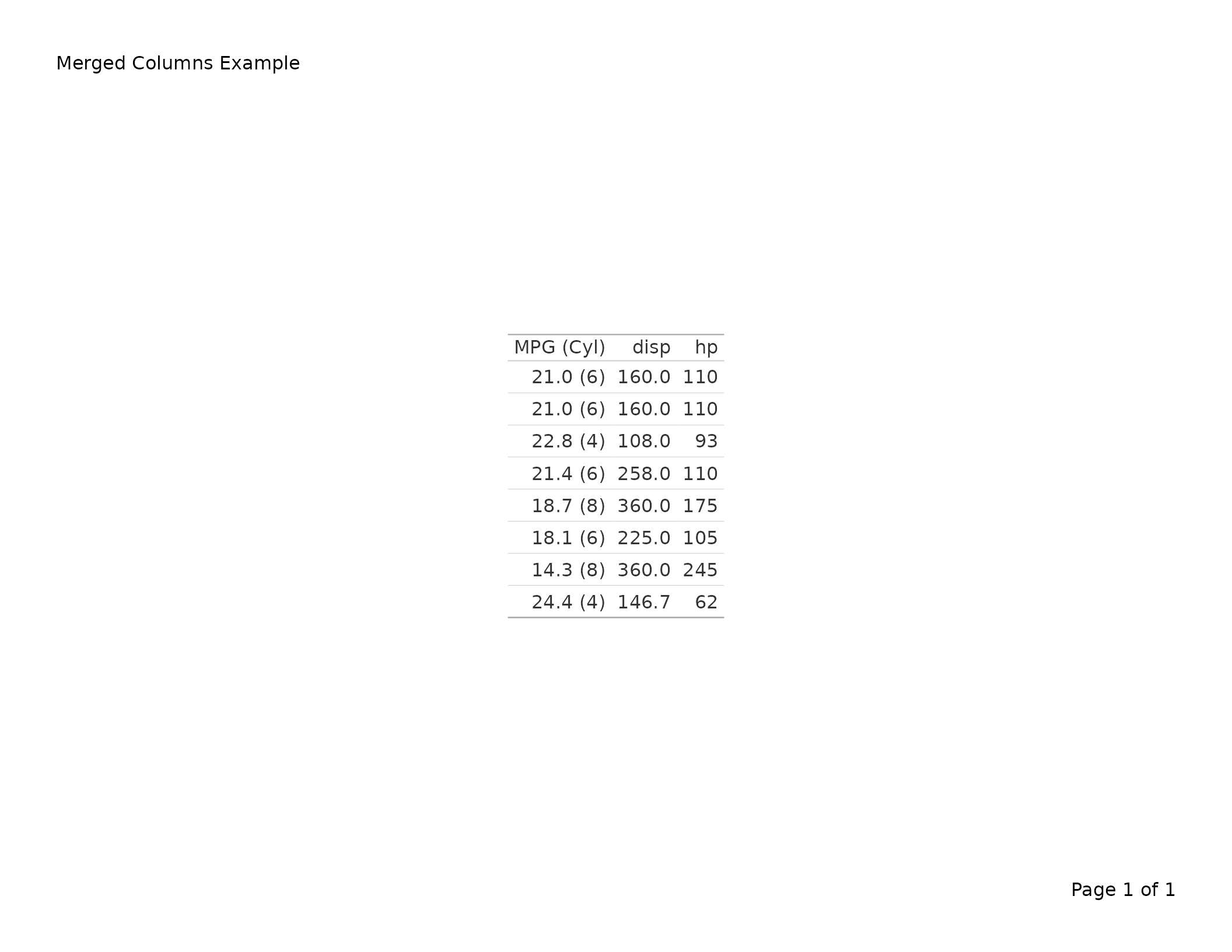

Merged columns

cols_merge() combines the display of two or more columns into one. This is carried through the boxhead and works across paginated pages.

tbl <- gt(head(mtcars[, 1:4], 8)) |>
  tab_header(title = "Merged Columns Example") |>
  cols_merge(
    columns = c(mpg, cyl),
    pattern = "{1} ({2})"
  ) |>
  cols_label(mpg = "MPG (Cyl)")

export_tfl(tbl, preview = TRUE)

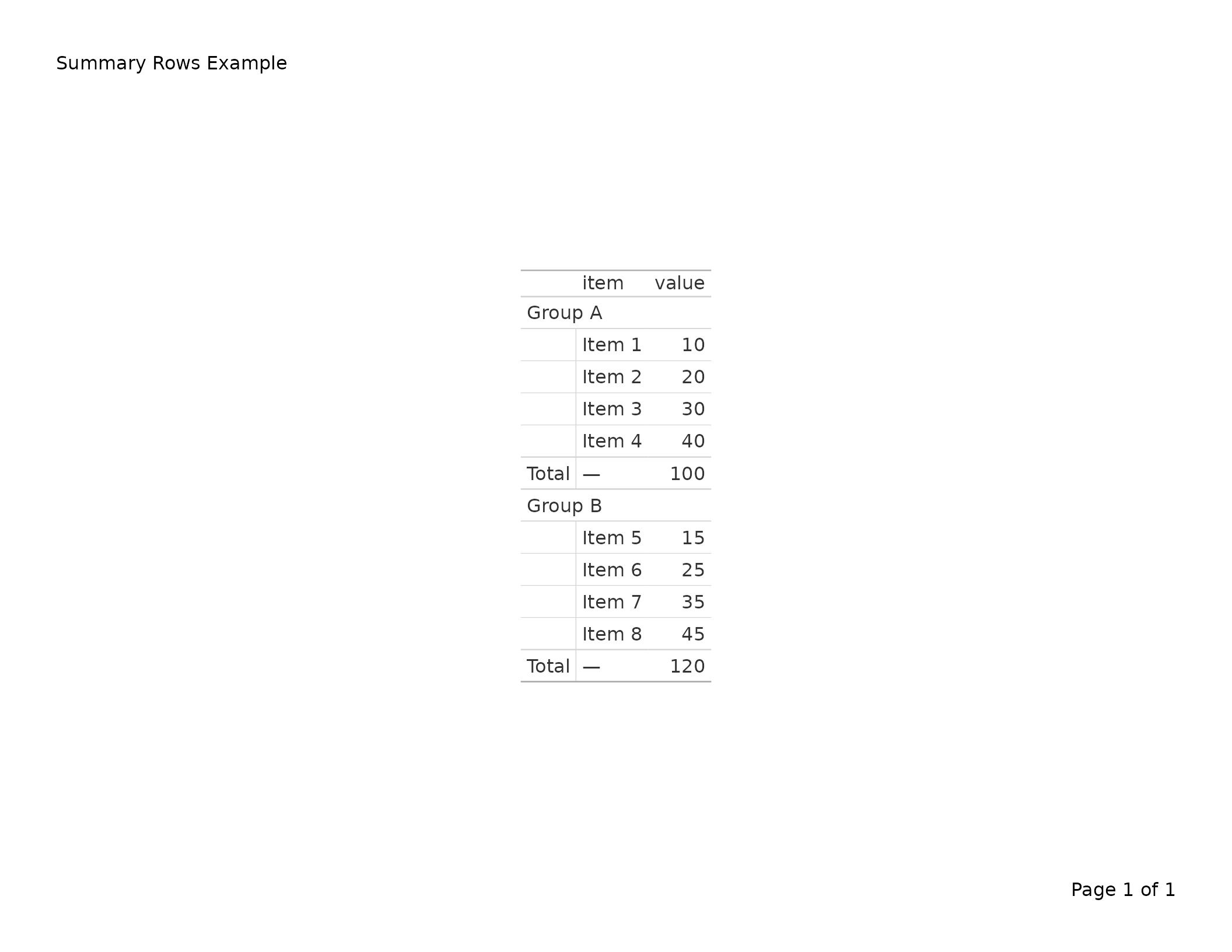

Summary rows

summary_rows() adds group-level summaries. During pagination, summaries are filtered to groups present on each page.

df <- data.frame(
  group = rep(c("Group A", "Group B"), each = 4),
  item  = paste0("Item ", 1:8),
  value = c(10, 20, 30, 40, 15, 25, 35, 45)
)

tbl <- gt(df, groupname_col = "group") |>
  tab_header(title = "Summary Rows Example") |>
  summary_rows(
    groups = everything(),
    columns = value,
    fns = list(Total = ~ sum(.))
  )

export_tfl(tbl, preview = TRUE)

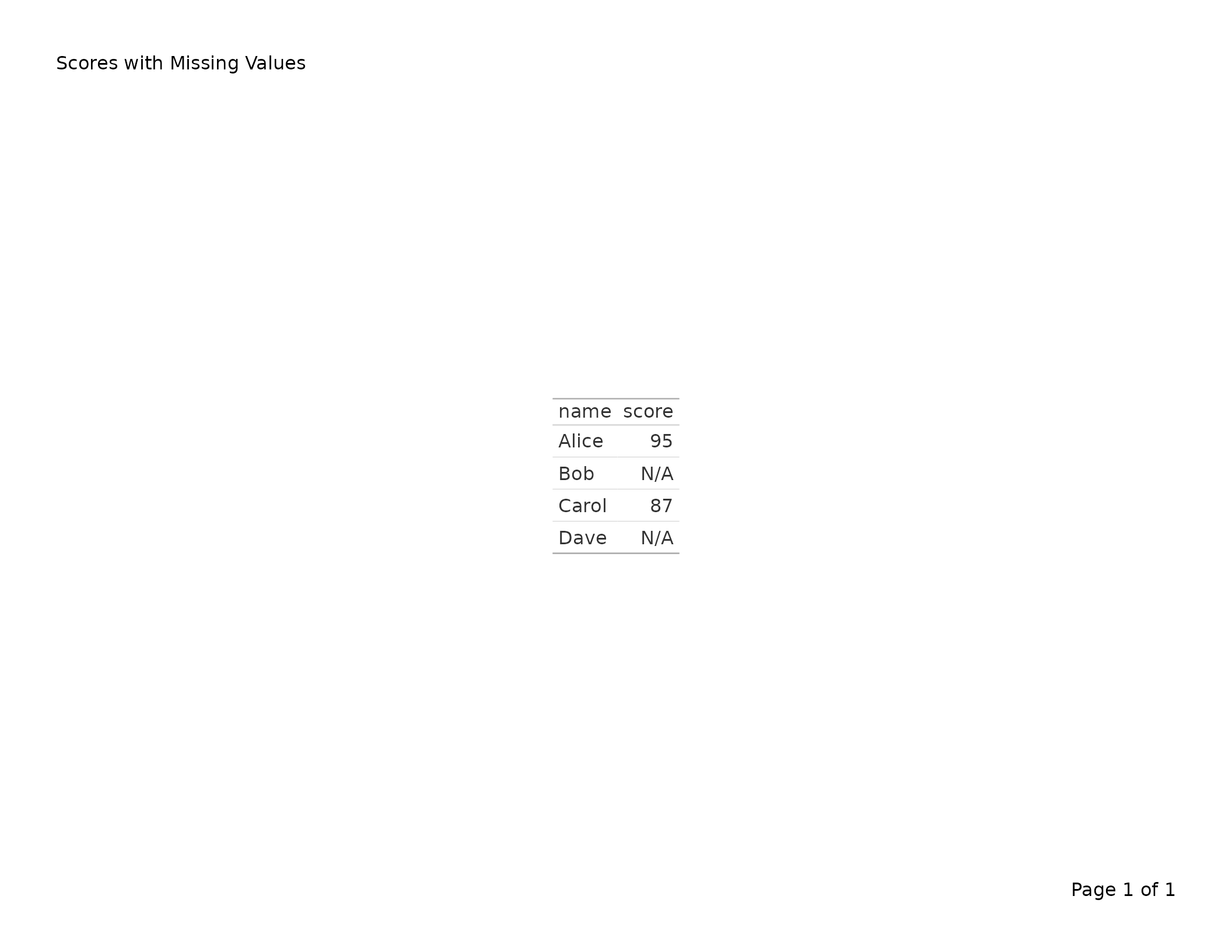

Missing value substitutions

sub_missing() and other sub_*() functions replace cell values with display text. These are re-indexed per page subset during pagination.

df <- data.frame(
  name  = c("Alice", "Bob", "Carol", "Dave"),
  score = c(95, NA, 87, NA)
)

tbl <- gt(df) |>
  tab_header(title = "Scores with Missing Values") |>
  sub_missing(columns = score, missing_text = "N/A")

export_tfl(tbl, preview = TRUE)

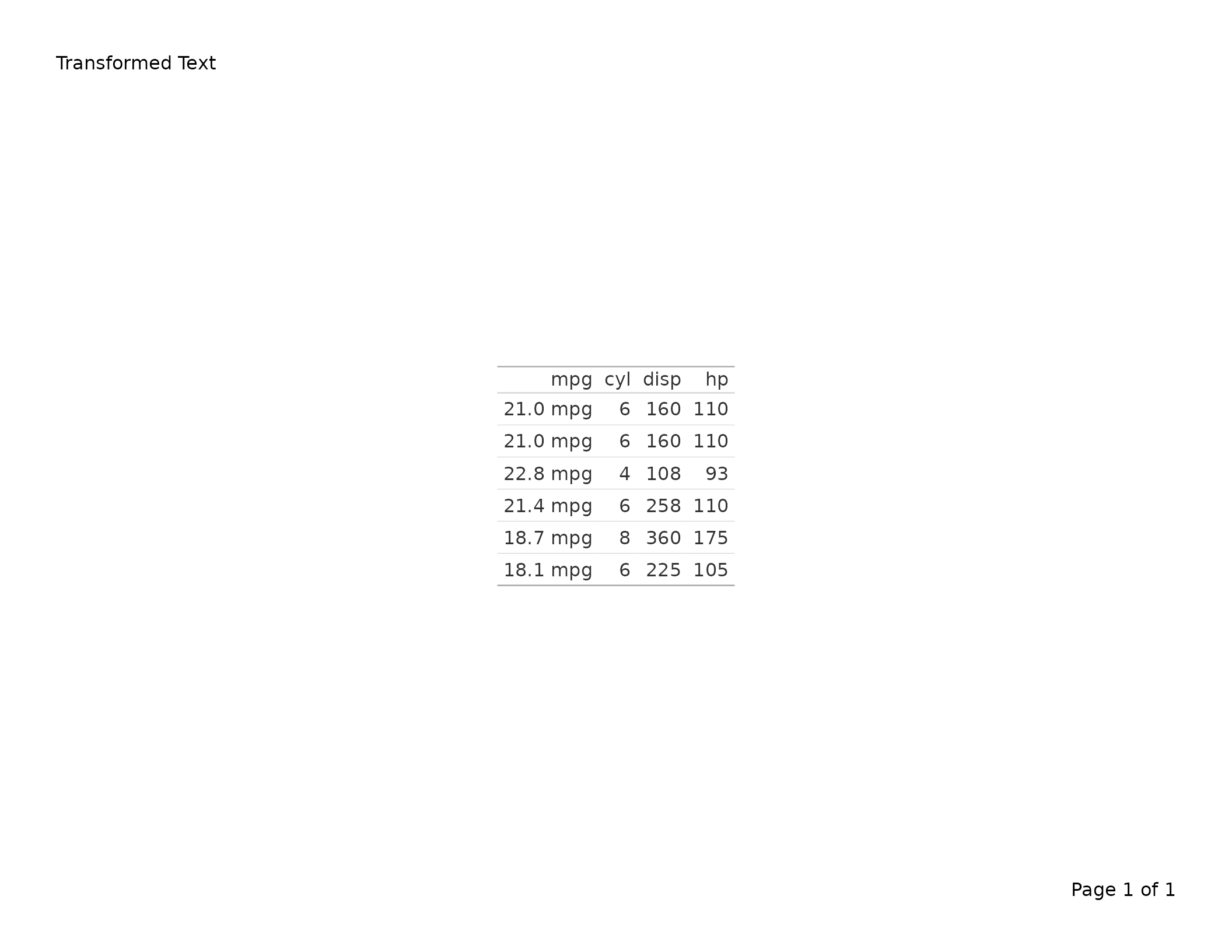

Text transforms

text_transform() applies arbitrary functions to cell text. Transforms are re-indexed so only rows present on each page are processed.

tbl <- gt(head(mtcars[, 1:4], 6)) |>
  tab_header(title = "Transformed Text") |>
  text_transform(
    locations = cells_body(columns = mpg),
    fn = function(x) paste0(x, " mpg")
  )

export_tfl(tbl, preview = TRUE)

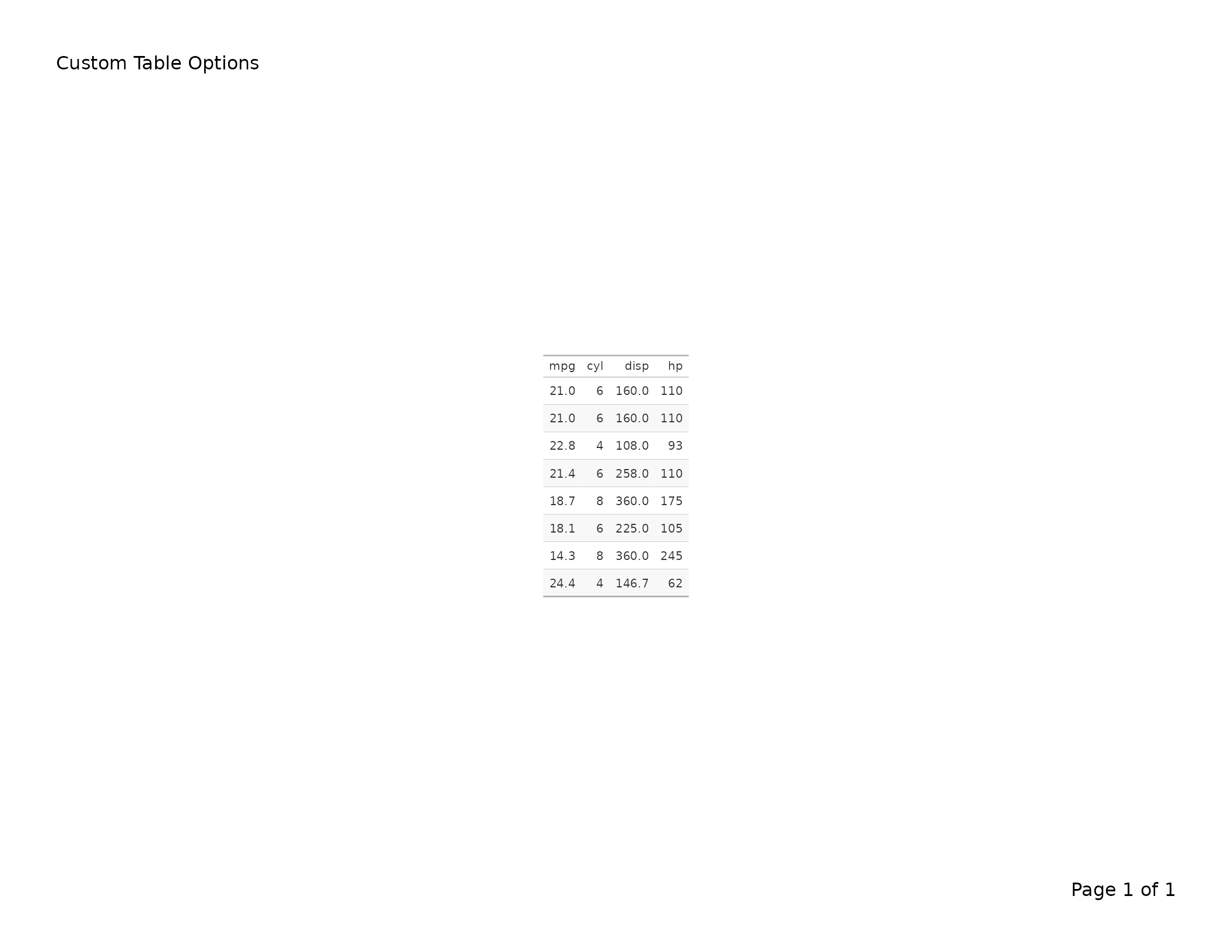

Table options

tab_options() settings (font size, row striping, etc.) are preserved on every paginated page.

tbl <- gt(head(mtcars[, 1:4], 8)) |>
  tab_header(title = "Custom Table Options") |>
  tab_options(
    table.font.size = px(10),
    row.striping.include_table_body = TRUE
  )

export_tfl(tbl, preview = TRUE)

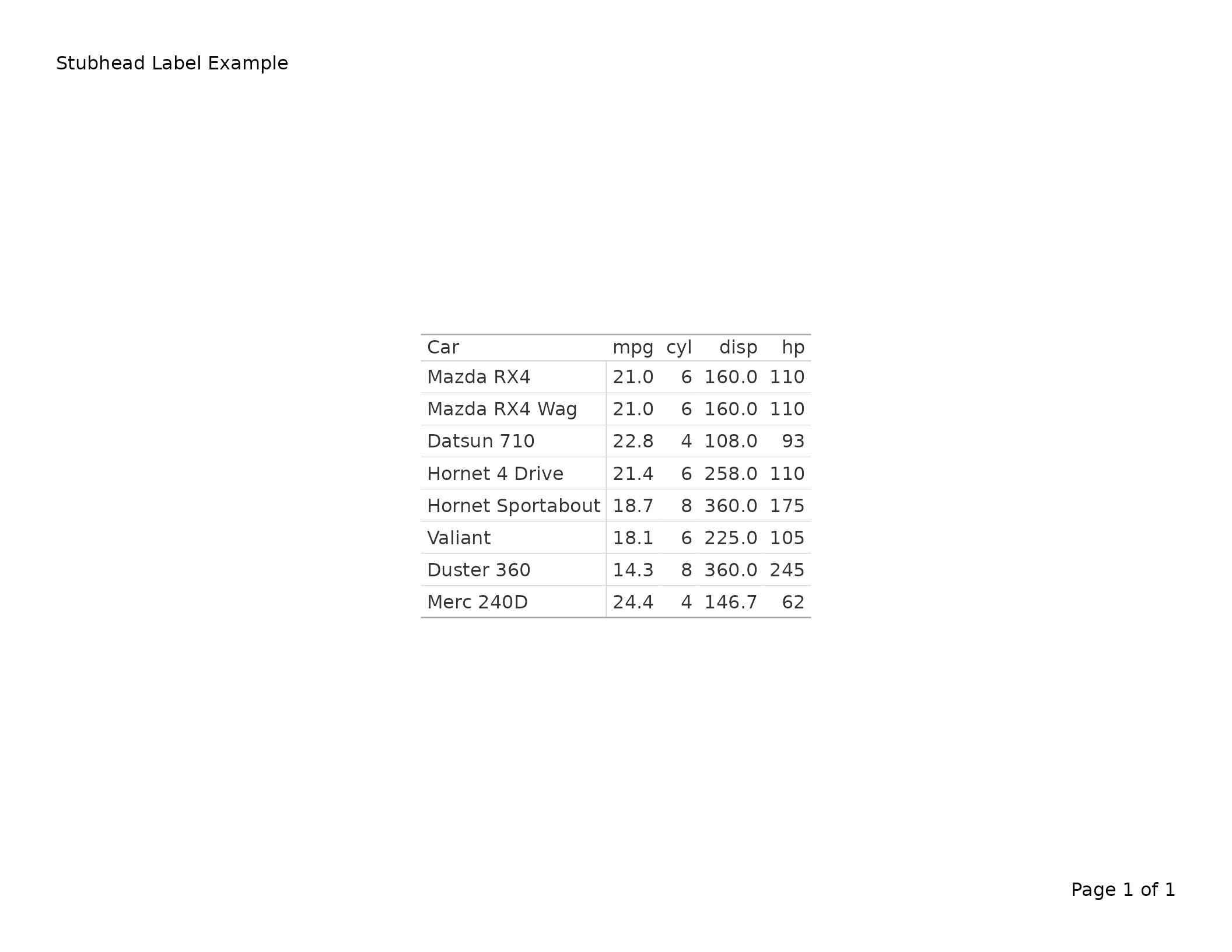

Stub head labels

When row names are used as a stub column, tab_stubhead() sets a label for that column. The label is preserved on every paginated page.

tbl <- gt(head(mtcars[, 1:4], 8), rownames_to_stub = TRUE) |>
  tab_header(title = "Stubhead Label Example") |>
  tab_stubhead(label = "Car")

export_tfl(tbl, preview = TRUE)

Locale support

When a locale is set via gt(locale = ...), it is preserved through pagination so that number formatting respects locale conventions.

tbl <- gt(head(mtcars[, 1:4], 8), locale = "de") |>
  tab_header(title = "German Locale Formatting") |>
  fmt_number(columns = mpg, decimals = 1)

export_tfl(tbl, file = "locale.pdf")
